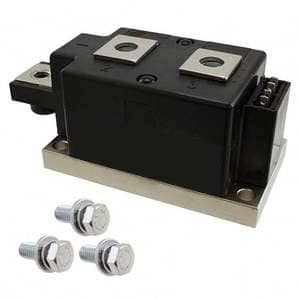

Industrial Controls Diode 100 Amp TM55DZ-M Bridge Diode Thyristor Module

Overview of Thyristor Modules

Thyristor modules are key components in power electronics technology. They consist of one or more thyristors encapsulated in a compact housing. Thyristors are four-layer, three-terminal semiconductor devices that are primarily used in applications that control and regulate high-power AC or DC current. They can quickly switch from a high-impedance state to a low-impedance conduction state based on a trigger signal, thereby achieving precise control of current.

Features and Benefits of Thyristor Modules

High power handling capability: Thyristor modules can withstand extremely high voltages and currents, making them suitable for industrial-grade power conversion and control systems.

Fast response time: Very short switching times and low losses ensure high-efficiency operation.

Reliability and durability: Rugged design, stable operation in harsh environments, and long life.

Easy integration: Modular design simplifies installation and reduces maintenance requirements.

Overload protection: Built-in protection mechanisms such as over-temperature and over-current protection enhance system safety.

Versatile applications: Widely used in a variety of applications requiring precise current control.

(Industrial Controls Diode 100 Amp TM55DZ-M Bridge Diode Thyristor Module)

Specification of Industrial Controls Diode 100 Amp TM55DZ-M Bridge Diode Thyristor Module

The Industrial Controls Diode 100 Amp TM55DZ-M Bridge Diode Thyristor Module is a high-performance power semiconductor component designed for industrial rectification and control applications. It integrates advanced diode and thyristor technology to deliver efficient AC-to-DC conversion, motor control, and power regulation in demanding environments. The module is built for reliability, offering robust thermal management and high surge current tolerance. Key specifications include a maximum repetitive reverse voltage (Vrrm) of 1600V, ensuring compatibility with high-voltage industrial systems. The average forward current (Ifav) is rated at 100A, with a surge current (Ifsm) capability of up to 1600A for 10ms, providing resilience against transient overloads. The forward voltage drop (Vf) is typically 1.1V at 100A, minimizing power loss and enhancing energy efficiency. The module features a low thermal resistance design, with a junction-to-case thermal resistance (Rth j-c) of 0.15°C/W and case-to-heatsink resistance (Rth c-h) of 0.05°C/W, enabling effective heat dissipation. It operates within a wide temperature range of -40°C to +150°C (junction temperature), making it suitable for extreme industrial conditions. The TM55DZ-M employs a compact, insulated metal baseplate package with screw terminals for secure mounting and easy integration into power assemblies. Its construction includes high-grade silicone gel encapsulation and an aluminum nitride (AlN) substrate for electrical isolation, moisture resistance, and mechanical durability. The module complies with international standards such as RoHS and UL recognition, ensuring safety and environmental compatibility. Applications include motor drives, welding equipment, UPS systems, battery chargers, and industrial power supplies. Its maintenance-free design and long service life reduce downtime in critical operations. The TM55DZ-M is ideal for engineers seeking a rugged, high-current rectification solution with precise control and thermal stability in heavy-duty industrial settings.

(Industrial Controls Diode 100 Amp TM55DZ-M Bridge Diode Thyristor Module)

Applications of Industrial Controls Diode 100 Amp TM55DZ-M Bridge Diode Thyristor Module

The Industrial Controls Diode 100 Amp TM55DZ-M Bridge Diode Thyristor Module is a high-performance power semiconductor device designed for robust industrial applications. Engineered to handle high current and voltage demands, this module is ideal for systems requiring precise control, rectification, and switching of electrical power. With a 100 Amp current rating and advanced thermal management, it ensures reliability in demanding environments. Below are key applications where the TM55DZ-M excels:

**Motor Control Systems**: The module is widely used in AC and DC motor drives, enabling smooth speed regulation, torque control, and directional changes. Its thyristor-based design allows for efficient phase-angle control, making it suitable for conveyor systems, CNC machines, and industrial pumps.

**Power Rectification**: As a bridge rectifier, the TM55DZ-M converts AC to DC power in industrial equipment such as welding machines, battery chargers, and electrolysis systems. Its high-current capacity ensures minimal energy loss during conversion, critical for heavy-duty operations.

**Heating and Temperature Control**: In industrial furnaces, induction heaters, and resistive heating systems, the module provides precise power modulation. By adjusting the firing angle of thyristors, it maintains consistent temperature levels, improving energy efficiency and process accuracy.

**Uninterruptible Power Supplies (UPS)**: The thyristor module acts as a static switch in UPS systems, ensuring seamless transition between power sources during outages. Its fast switching capability protects sensitive equipment from voltage fluctuations.

**Renewable Energy Systems**: In solar inverters and wind turbine converters, the TM55DZ-M manages power flow between renewable sources and the grid. It stabilizes output by rectifying and conditioning variable input voltages.

**Industrial Automation**: The module integrates into PLCs and automated machinery for controlling actuators, solenoids, and relays. Its compact design and high surge tolerance make it suitable for space-constrained panels.

Key advantages of the TM55DZ-M include low forward voltage drop, high thermal conductivity, and robust isolation between components. Built to withstand voltage spikes and temperature extremes, it reduces downtime in critical operations. Whether in manufacturing, energy, or automation, this thyristor module delivers durability, efficiency, and precision for industrial power control challenges.

Company Profile

PDDN Photoelectron Technology Co., Ltd.(sales@pddn.com) is one of the leading enterprises in power electronics technology and power products, which is fully involved in developing solar inverters， transformers, voltage regulators, distribution cabinets, thyristors， modules， diodes， heaters, and other electronic devices or semiconductors. We will be committed to providing users with high-quality, efficient products and considerate service.

It accepts payment via Credit Card, T/T, West Union, and Paypal. PDDN will ship the goods to customers overseas through FedEx, DHL, by sea, or by air. If you want high-quality Industrial Controls Diode 100 Amp TM55DZ-M Bridge Diode Thyristor Module, please send us inquiries; we will be here to help you.

Payment Methods

L/C, T/T, Western Union, Paypal, Credit Card etc.

Shipment

By sea, by air, by express, as customers request.

Storage Conditions

1) Store in a dry environment at room temperature.

2) Avoid damp and high temperature.

3) Use immediately after opening the inner packing bag.

5 FAQs of Industrial Controls Diode 100 Amp TM55DZ-M Bridge Diode Thyristor Module

The TM55DZ-M Bridge Diode Thyristor Module is designed for high-power industrial applications requiring precise AC-to-DC rectification and phase control. Common uses include motor speed regulation, power supplies, heating systems, and industrial automation equipment. Its thyristor-based design allows adjustable output through firing angle control, making it ideal for dynamic load management and energy-efficient operations in machinery, UPS systems, and welding equipment.

The module features a 100 Amp average forward current rating and a repetitive peak reverse voltage (Vrrm) typically up to 1600V, ensuring robust performance in high-voltage environments. It supports surge currents up to 1500A for short durations and operates within a junction temperature range of -40°C to +125°C, providing reliability under varying thermal conditions.

For installation, secure the module to a heatsink using M6 screws with a recommended torque of 1.2 Nm to ensure mechanical stability and thermal conductivity. Apply a thin layer of thermal grease between the module base and heatsink to minimize thermal resistance. Ensure proper insulation and avoid over-tightening to prevent damage to the housing or terminals.

Effective thermal management is critical. Use a heatsink with a thermal resistance below 0.5°C/W to maintain junction temperatures within safe limits. Adequate airflow or liquid cooling is recommended for continuous high-load operations. Monitor operating temperatures to prevent overheating, which can degrade performance or cause premature failure.

Additional protective components are advised. Incorporate fast-acting fuses rated for the module’s current capacity to guard against overcurrent events. Snubber circuits may be necessary to suppress voltage spikes during switching, and RC networks can limit dv/dt stress. Ensure proper isolation and grounding to avoid electrical interference or short circuits, enhancing system longevity and safety.

(Industrial Controls Diode 100 Amp TM55DZ-M Bridge Diode Thyristor Module)
